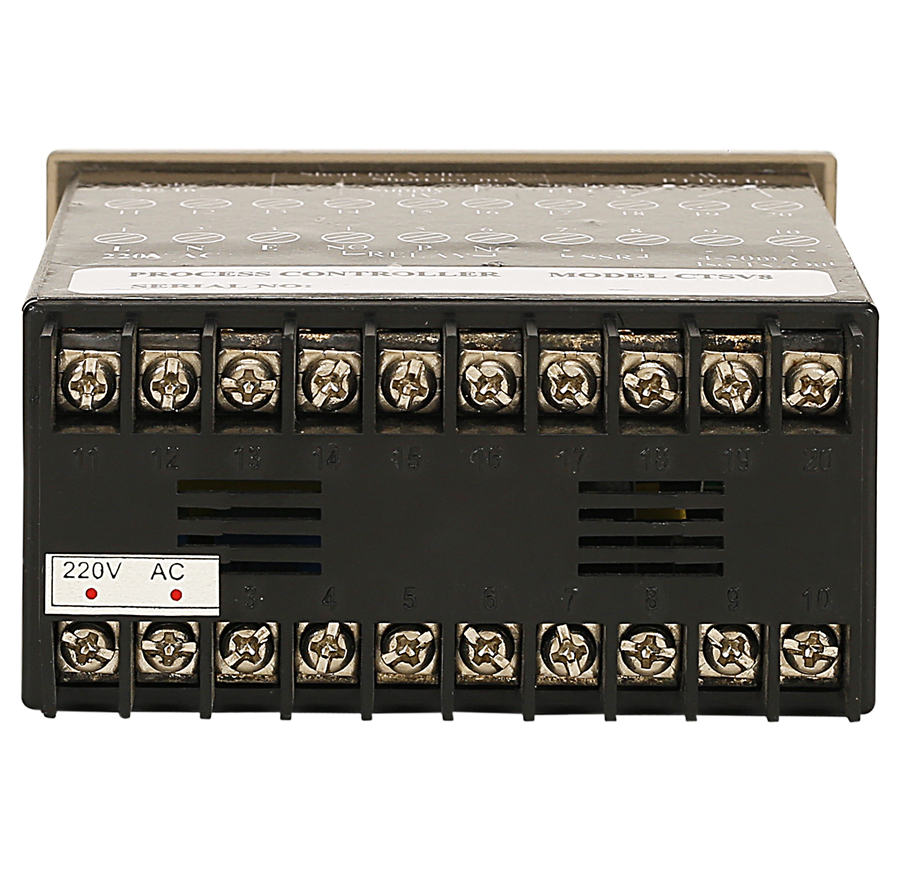

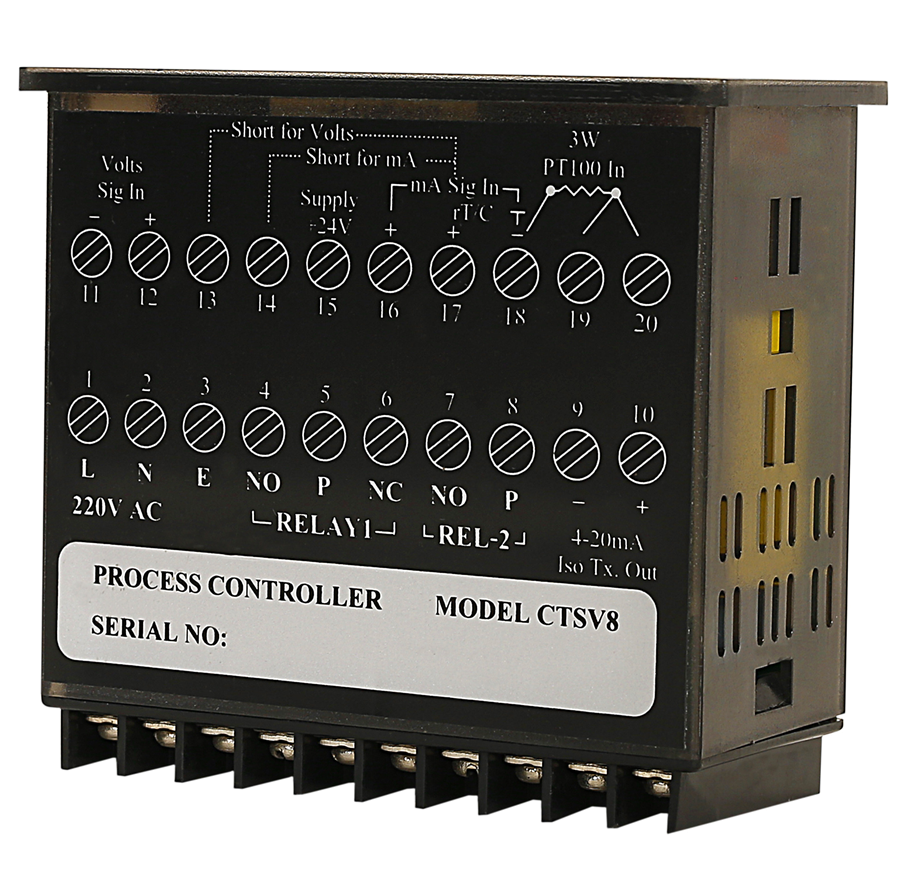

Name: Process Controller Model CT-SV8
SKU: SV8
Availability: InStock

Description

Large 4 Digit 0.8” 7 Segment LEDs for Process Value. Separate 0.36” Green Display for Set Value
PT100 (RTD) sensor & 5 types of common thermocouples with Auto cold junction compensation
Input for 4-20mA / 0-20mA / 1-5V / 0-5V/ 0-10V from Tx for Pressure, Humidity, pH, Temperature etc.
Display user programmable from -1999 to 9999
Decimal user settable
Heater logic relay and Cooler Logic SSR outputs
4-20mA isolated re-transmission output
Hysterisis for set limits user settable
Offset separately programmed from front
Excitation voltage for loop Tx. Sourced

Additional information

Your custom text or HTML.

Display	4 Digit 0.8” Red 7 Segment LED display for Process Value 4 Digit 0.36” Green 7 Segment LED display for Set Value
Inputs	Linear (Universal from Tx) 0-20mA, 4-20mA, 0-5V, 1-5V & 0-10V Non-linear (temperature sensors) T/C – R,T,J,K,N and 3 Wire PT100
Output	Isolated 4-20mA re-transmission output for all inputs
Accuracy	±0.25% of SPAN ± 1 Count
Resolution	Settable 0.001 to 9999 for linear inputs 1degC for thermocuples, 0.1degC for PT100
Control	2 Set of Control Limits Set-1 heater logic & Set-2 cooler logic 5 Amps/220V AC Relay Output for Set 1. SSR 12V DC output for Set 2 Hysterisis settable
Exciter Voltage	24V @ 30mA for loop Tx
Power	220V AC ± 15% @ 50/60 Hz
Ambient	0-55˚C
Humidity	Up to 90% (non-condensing)
Power Consumption	10VA
Case	48 x 96 x 85 mm Plastic ABS
Front Fascia	48 x 96 mm
Panel Cutout	43 x 91 mm

Additional Information

Display:

4 Digit 0.8” Red 7 Segment LED display for Process Value 4 Digit 0.36” Green 7 Segment LED display for Set Value

Inputs:

Linear (Universal from Tx) 0-20mA, 4-20mA, 0-5V, 1-5V & 0-10V Non-linear (temperature sensors) T/C – R,T,J,K,N and 3 Wire PT100

Output:

Isolated 4-20mA re-transmission output for all inputs

Accuracy:

±0.25% of SPAN ± 1 Count

Resolution:

Settable 0.001 to 9999 for linear inputs 1degC for thermocuples, 0.1degC for PT100

Control:

2 Set of Control Limits Set-1 heater logic & Set-2 cooler logic 5 Amps/220V AC Relay Output for Set 1. SSR 12V DC output for Set 2 Hysterisis settable

Exciter Voltage:

24V @ 30mA for loop Tx

Power:

220V AC ± 15% @ 50/60 Hz

Ambient:

0-55˚C

Humidity:

Up to 90% (non-condensing)

Power Consumption:

10VA

Case:

48 x 96 x 85 mm Plastic ABS

Front Fascia:

48 x 96 mm

Panel Cutout:

43 x 91 mm
