Programmable Process Controller (Input: 4-20mA only)
Programmable Process Controller (Input: 4-20mA only) - Image 2
Programmable Process Controller (Input: 4-20mA only) - Image 3

Programmable Process Controller (Input: 4-20mA only)

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Process Controller
SKU: 2602M
Download Catalogue

Description

  • Microprocessor based precision controller
  • Input for 4-20mA from Tx for Pressure, Humidity, pH, Temperature etc
  • Display user programmable from 0 to 9999
  • 4 Digit 0.56” Bright 7 Segment LEDs
  • Decimal user settable
  • Separate heater & cooler logic relays
  • Hysterisis of relay control settable
  • Offset separately programmed from front

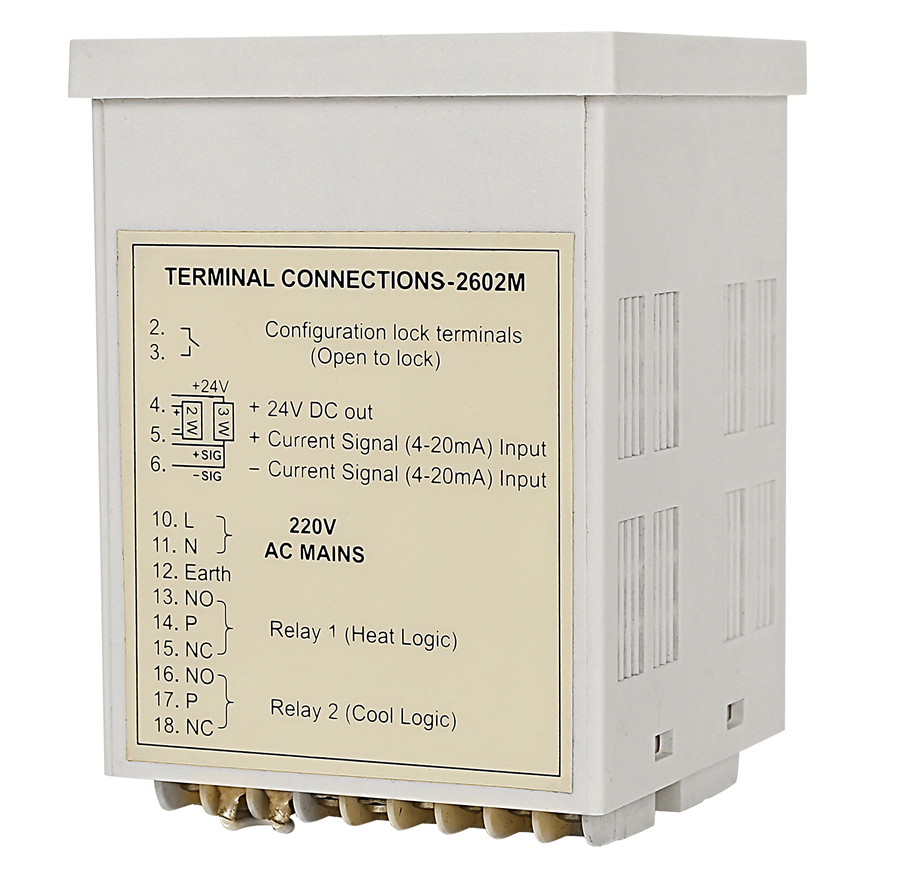

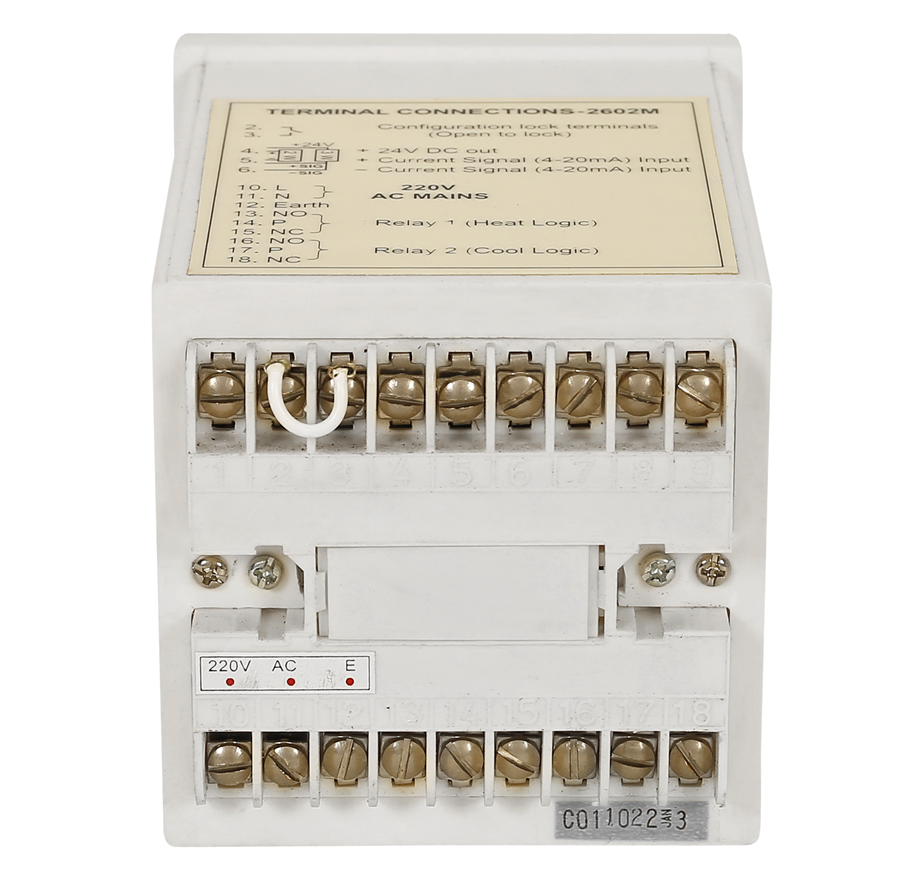

  • Configuration lockable by rear jumper
  • Excitation voltage for loop Tx. Sourced
  • Touch type membrane control keys

Additional information

Your custom text or HTML.

Display

4 Digit 0.56” Red 7 Segment LED display
Inputs

4-20mA
Accuracy

±0.25% of SPAN ± 1 Count
Resolution

Settable 0.001 to 9999 for linear inputs
Control

2 Set of Control Limits
Set-1 heater logic & Set-2 cooler logic
5 Amps/220V AC Relay Contact output
Hysterisis settable
Configuration Lock

Jumper at rear
Exciter Voltage

24V @ 30mA for loop Tx
Power

220V AC ± 15% @ 50/60 Hz
Ambient

0-55˚C
Power Consumption

10VA
Case

96 x 96 x 135 mm Plastic ABS

Additional Information

Display:
4 Digit 0.56” Red 7 Segment LED display
Inputs:
4-20mA
Accuracy:
±0.25% of SPAN ± 1 Count
Resolution:
Settable 0.001 to 9999 for linear inputs
Control:
2 Set of Control Limits Set-1 heater logic & Set-2 cooler logic 5 Amps/220V AC Relay Contact output Hysterisis settable
Configuration Lock:
Jumper at rear
Exciter Voltage:
24V @ 30mA for loop Tx
Power:
220V AC ± 15% @ 50/60 Hz
Ambient:
0-55˚C
Power Consumption:
10VA
Case:
96 x 96 x 135 mm Plastic ABS
