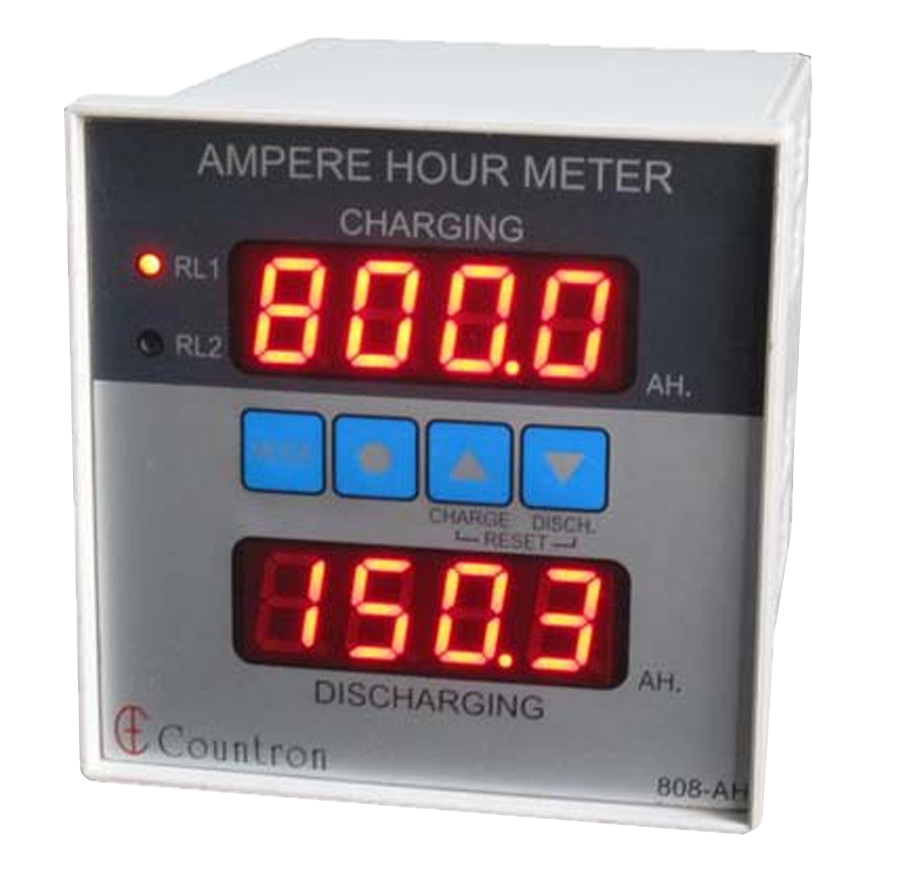

Name: Ampere Hour Meter with Charge Discharge
SKU: 808AH
Availability: InStock

Ampere Hour Meter with Charge Discharge

Original price was: 78.00$.Current price is: 68.00$.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce laoreet, ligula condimentum tincidunt, arcu orci laoreet massa, nec sagittis elit urna in diam. Sed consectetur dolor non nulla porttitorLorem ipsum dolor sit amet, consectetur adipiscing elit.

SKU: 808AH

Description

Separate 4 displays for Charging and Discharging ampere-hours
Auto recognition of charge/discharge current
Shunt calibration programmable up to 9999 for 75mV
Ampere-Hour counters stored on power failure
Settable limit for Discharge Ampere-Hours
Ampere Hour/Ampere Minute user selectable
Rear calibration lock to prevent tampering with settings
Aesthetically designed front panel with membrane switches

Additional information

Your custom text or HTML.

Display	4 Digit 7 Segment Red LED display for Charging Ampere Hours 4 Digit 7 Segment Red LED display for Ampere-Hours
Shunt Calibration	Maximum 9999 Amps corresponding to 75mV settable from front panel
Discharge Set Point	Settable from 0-9999
Resolution	1AH/0.1AH
Relay	In alarm mode for Discharge Ampere Hours
Contact Rating	NO-P-NC @ 5Amps/220V AC
Memory	Settings and Ampere-Hours saved in solid state EEPROM
Lock	By rear jumper to prevent accidental tampering with shunt setting
Supply	48V DC ± 10% (Also available in 24V/96V/120V DC)
Size	Front Fascia 96mm x 96mm
Weight	800 grams

Additional Information

Display:

4 Digit 7 Segment Red LED display for Charging Ampere Hours 4 Digit 7 Segment Red LED display for Ampere-Hours

Shunt Calibration:

Maximum 9999 Amps corresponding to 75mV settable from front panel

Discharge Set Point:

Settable from 0-9999

Resolution:

1AH/0.1AH

Relay:

In alarm mode for Discharge Ampere Hours

Contact Rating:

NO-P-NC @ 5Amps/220V AC

Memory:

Settings and Ampere-Hours saved in solid state EEPROM

Lock:

By rear jumper to prevent accidental tampering with shunt setting

Supply:

48V DC ± 10% (Also available in 24V/96V/120V DC)

Size:

Front Fascia 96mm x 96mm

Weight:

800 grams
