Name: 6 Digit Preset Counter
SKU: 256
Availability: InStock

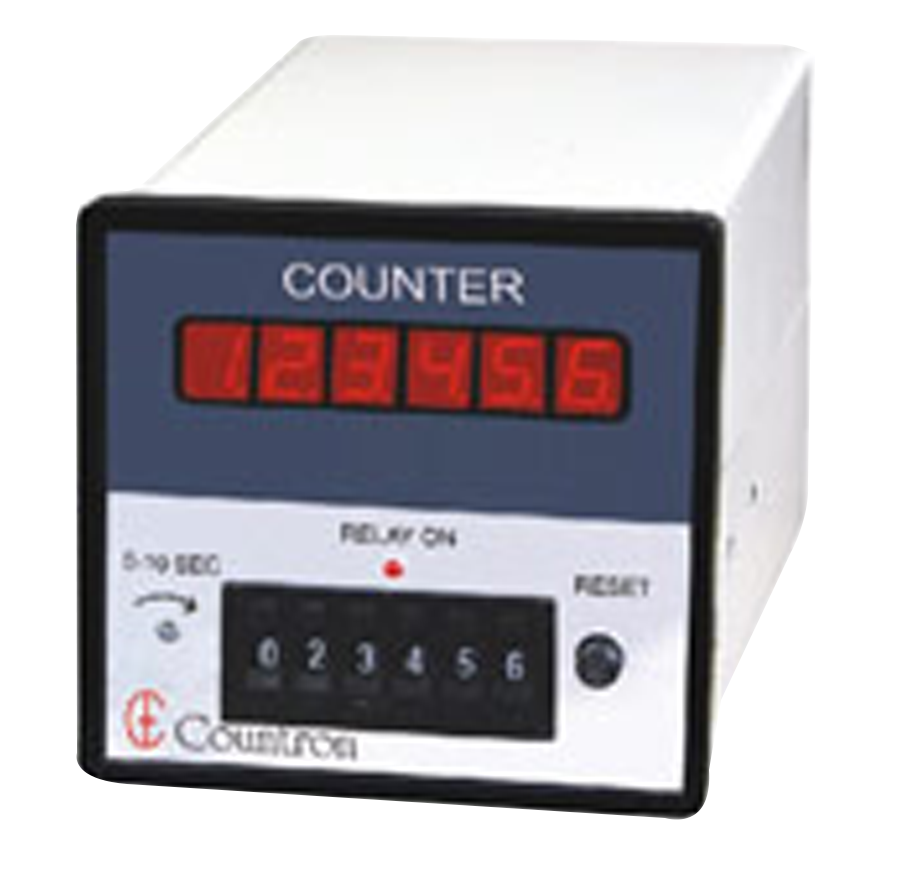

6 Digit Preset Counter

Original price was: 78.00$.Current price is: 68.00$.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce laoreet, ligula condimentum tincidunt, arcu orci laoreet massa, nec sagittis elit urna in diam. Sed consectetur dolor non nulla porttitorLorem ipsum dolor sit amet, consectetur adipiscing elit.

SKU: 256

Description

Input signal suitable for Contact/Make break, Limit switch, Proximity sensor, Photo-electric switch, Infra-red Sensor, Rotary Encoder or any other sensor giving Pulse output.
Preset Count settable by front pushwheels
Auto/manual mode user selectable
For Auto mode, delayed reset time user settable from 1-10sec
CMOS/LSI design for high reliability and accuracy. No moving parts as in Electro-mechanical Counters.
Reset by Front Push Button or external contact.
Special de-bounce circuit to prevent spurious counts in slow speed/contact make break.
12V/75mA DC output for Proximity sensor/Photo sensor.
Built in Ni-Cd rechargeable battery back-up for saving count on power down.

Additional information

Your custom text or HTML.

Display	6 Digit(0.39 inch Char Height, Red 7 Seg)
Range	999999
Size(Front Facia)	96 mm x 96 mm
Count Mode	Up
Output	1 NO-P-NC Change Over Contact 5A/250V AC
Reset	PushButton / Contact (Pulse Operation available against Request)
Output Mode	Auto Repetitive or Single Cycle.
Power Supply	230 V AC +/- 10% or 12V DC
Operating Temperature	0 – 50°C
Storage Temperature	– 10 to + 70°C

Additional Information

Display:

6 Digit(0.39 inch Char Height, Red 7 Seg)

Range:

999999

Size(Front Facia):

96 mm x 96 mm

Count Mode:

Output:

1 NO-P-NC Change Over Contact 5A/250V AC

Reset:

PushButton / Contact (Pulse Operation available against Request)

Output Mode:

Auto Repetitive or Single Cycle.

Power Supply:

230 V AC +/- 10% or 12V DC

Operating Temperature:

0 – 50°C

Storage Temperature:

– 10 to + 70°C
